ACZ11BR1E-15FD1-12C Mechanical Panel Mount Encoder

ACZ11BR1E-15FD1-12C

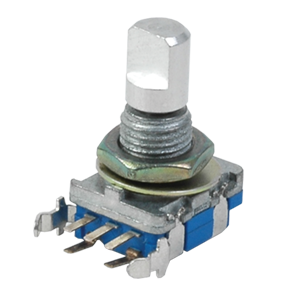

11 mm, 12 PPR, M7 x 0.75 mm Bushing, 15 mm Shaft Length, F Shaft Type with Push Switch, Vertical, Through Hole, PCB Pins, Mechanical Panel Mount Encoder

Datasheet

Specifications

Type Description
Select
Encoder Type Incremental
Package Type Panel Mount
Resolution (PPR) 12
Output Type Single Ended Quadrature
Input Voltage (Vdc) 0 ~ 5
Detent Yes
Termination PCB Pins
Bushing Length (mm) M7 x 0.75
Operating Temp. (°C) -10 ~ 65
Series ACZ11
Shaft Length (mm) 15
