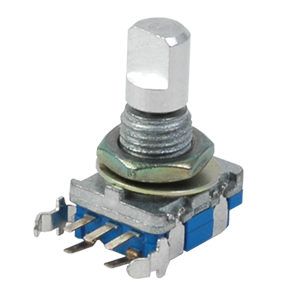

ACZ11BR1E-15FA1-12C
11.7 mm, 12 PPR, M7 x 0.75, 5 mm threaded mm Bushing, 15 mm Shaft Length, with Push Switch, Horizontal, Through Hole, PCB Pins, Mechanical Panel Mount Encoder
Shop Compatible Knobs!
Search Same Sky's plastic and aluminum knobs that are compatible with our range of rotary potentiometers and panel mount incremental encoders featuring 6 mm diameter D-cut shafts.
LEARN MORESpecifications
| Type | Description | |
|---|---|---|
| Encoder Type | Incremental |
|
| Package Type | Panel Mount |
|
| Base Size (mm) | 11.7 |
|
| Resolution (PPR) | 12 |
|
| Output Type | Single Ended Quadrature |
|
| Input Voltage (Vdc) | 0 ~ 5 |
|
| Shaft Length (mm) | 15 |
|
| Detent | Yes |
|
| Orientation | Horizontal |
|
| Termination | PCB Pins |
|
| Push Switch | Yes |
|
| Operating Temp. (°C) | -10 ~ 65 |
|
| Series | ACZ11 |
|
| IP Rating | No IP Rating |
|
| Bushing Length (mm) | M7 x 0.75, 5 mm threaded |
|
