PTNS2-1520M-B01

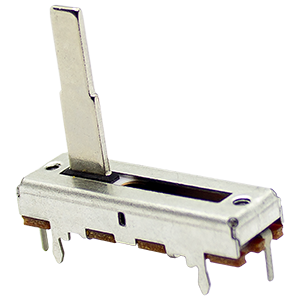

30 mm, Vertical, Linear, 1K, Through Hole, 20mm Metal Lever Slide Potentiometer
Specifications
| Type | Description | |
|---|---|---|
| Potentiometer Type | Slide |
|
| Shaft Length (mm) | 20 |
|
| Size (mm) | 30 |
|
| Stroke Length (mm) | 15 |
|
| Termination | Down Facing PC Pins |
|
| Resistance (kΩ) | 1 |
|
| Taper | Linear |
|
| Orientation | Vertical |
|
| Resistance Tolerance (%) | 20 |
|
| Power (W) | 0.25 |
|
| Detent | No Detent |
|
| Mounting Type | Through Hole |
|
| Series | PTNS2 |
|
| Switch | No |
|
