PTNS1-205P-B10

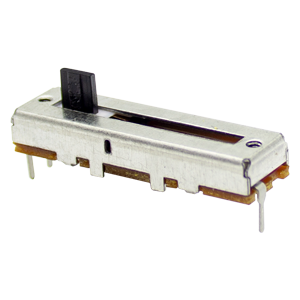

35 mm, Vertical, Linear, 10K, Through Hole, 5mm Plastic Lever Slide Potentiometer
Specifications
| Type | Description | |
|---|---|---|
| Potentiometer Type | Slide |
|
| Shaft Length (mm) | 5 |
|
| Size (mm) | 35 |
|
| Stroke Length (mm) | 20 |
|
| Termination | Down Facing PC Pins |
|
| Resistance (kΩ) | 10 |
|
| Taper | Linear |
|
| Orientation | Vertical |
|
| Resistance Tolerance (%) | 20 |
|
| Power (W) | 0.25 |
|
| Detent | No Detent |
|
| Mounting Type | Through Hole |
|
| Series | PTNS1 |
|
| Switch | No |
|
