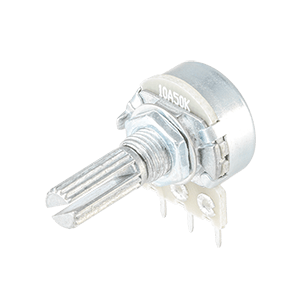

PTN16-A100220K1B1
16.5 mm, Horizontal, Linear, 100 kΩ, Through Hole, Knurled Shaft Single Section Rotary Potentiometer
Specifications
Type | Description | |
---|---|---|
Potentiometer Type | Rotary |
|
Size (mm) | 16.5 |
|
Termination | Straight Pc Pins |
|
Taper | Linear |
|
Orientation | Horizontal |
|
Resistance (kΩ) | 100 |
|
Shaft Length (mm) | 20 |
|
Resistance Ω | 100 |
|
Resistance Tolerance (%) | 20 |
|
Operating Temp Range (°C) | -10 ~ 75 |
|
Number of Turns | 1 |
|
Bushing | No Bushing |
|
Detent | Center Detent |
|
Mounting Type | Through Hole |
|
Number of Gangs | 1 |
|
Power (W) | 0.125 |
|
Rotation (°) | 300 |
|
Rotor | Shafted |
|
Shaft Style | Knurled (18 Teeth) |
|
Series | PTN16 |
|
