PTN16-A01120K1C1

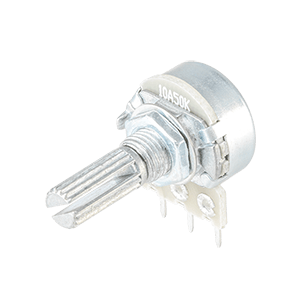

16.5 mm, Horizontal, Reverse Logarithmic, 1 kΩ, Through Hole, Knurled Shaft Single Section Rotary Potentiometer
Specifications
| Type | Description | |
|---|---|---|
| Potentiometer Type | Rotary |
|
| Size (mm) | 16.5 |
|
| Termination | Straight Pc Pins |
|
| Taper | Reverse Logarithmic |
|
| Orientation | Horizontal |
|
| Resistance (kΩ) | 1 |
|
| Resistance Ω | 1 |
|
| Shaft Length (mm) | 20 |
|
| Resistance Tolerance (%) | 20 |
|
| Number of Turns | 1 |
|
| Power (W) | 0.125 |
|
| Detent | No Detent |
|
| Bushing | No Bushing |
|
| Mounting Type | Through Hole |
|
| Rotation (°) | 300 |
|
| Number of Gangs | 1 |
|
| Shaft Style | Knurled (18 Teeth) |
|
| Switch | No |
|
| Rotor | Shafted |
|
| Series | PTN16 |
|
