PT01-D130K2-B204

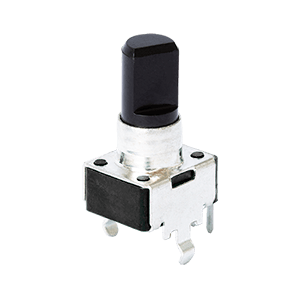

10 mm, Vertical, Linear, 200 kΩ, Through Hole, Knurled (40 Teeth) Rotary Potentiometer
Specifications
| Type | Description | |
|---|---|---|
| Potentiometer Type | Rotary |
|
| Size (mm) | 10 |
|
| Termination | Rear Mount |
|
| Taper | Linear |
|
| Orientation | Vertical |
|
| Resistance (kΩ) | 200 |
|
| Shaft Length (mm) | 30 |
|
| Resistance Ω | 200 |
|
| Resistance Tolerance (%) | 20 |
|
| Number of Turns | 1 |
|
| Power (W) | 0.05 |
|
| Detent | No Detent |
|
| Bushing | No Bushing |
|
| Mounting Type | Through Hole |
|
| Rotation (°) | 280 |
|
| Number of Gangs | 1 |
|
| Shaft Style | Knurled (40 Teeth) |
|
| Rotor | Shafted |
|
