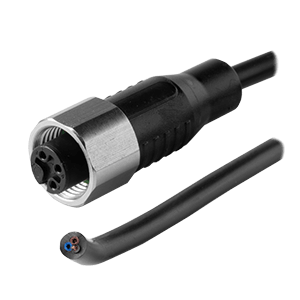

CDM1235-08A-01FST-2M-67
Circular Cable Assembly, M12 Female Plug, Blunt Cut Cable, 8 Pins, Vertical, Unshielded, A-Coding, 30 V, 2 A, Screw Stainless Steel, M12 x 1.0, 2 M, 24 AWG, Black, PVC, IP67
Specifications
| Type | Description | |
|---|---|---|
| Connector 1 | M12 Female Plug |
|
| Connector 2 | Blunt Cut Cable |
|
| Cable Length (mm) | 2000 |
|
| Connector 1 Positions | 8 |
|
| Shielding | No |
|
| Cable Style | Round |
|
| Connector 1 Mounting Thread Size | M12 x 1.0 |
|
| Voltage Rating (Vac) | 30 |
|
| Current Rating (A) | 2 |
|
| Connector 1 Mounting Style | Free Hanging |
|
| Connector 1 Orientation | Straight |
|
| Connector 2 Mounting Thread Size | None |
|
| Connector 2 Coding | None |
|
| Connector 2 Mounting Style | Wire Leads |
|
| Connector 2 Orientation | None |
|
| Contact Finish | Gold Plated |
|
| Connector 1 Coding | A |
|
| Screw Material | Stainless Steel |
|
| Shell Finish | Brass with Nickel Plating |
|
| Shell Size (mm) | 12 |
|
| Wire Gauge (AWG) | 24 |
|
| Jacket Material | PVC |
|
| Color | Black |
|
| IP Rating | IP67 |
|
| Series | CDM1235 |
|
