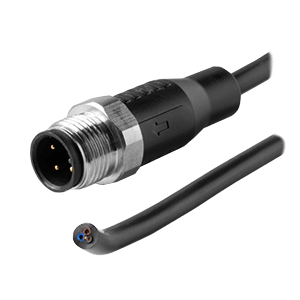

CDM1234 Series

CDM1234 Series
CDM1234 Series Alternate View
CDM1234 Series Alternate View
CDM1234 Series Alternate View with Cable

CDM1234-08A-01MST-3M-67

Circular Cable Assembly, M12 Female Plug, Blunt Cut Cable, 8 Pins, Vertical, Unshielded, A-Coding, 30 V, 2 A, Screw Stainless Steel, M12 x 1.0, 3 M, 24 AWG, Black, PVC, IP67

Datasheet

Specifications

Type Description
Select
Connector 1 M12 Male Plug
Connector 1 Orientation Straight
Connector 2 Blunt Cut Cable
Cable Length (mm) 3000
Connector 1 Positions 8
Shielding No
Cable Style Round
Connector 1 Mounting Thread Size M12 x 1.0
Jacket Material PVC
Voltage Rating (Vac) 30
Screw Material Stainless Steel
Current Rating (A) 2
Connector 1 Coding A
Connector 1 Mounting Style Free Hanging
Connector 2 Mounting Thread Size None
Connector 2 Coding None
Connector 2 Mounting Style Wire Leads
Shell Size (mm) 12
Connector 2 Orientation None
Contact Finish Gold Plated
Color Black
IP Rating IP67
Shell Finish Brass with Nickel Plating
Wire Gauge (AWG) 24
Series CDM1234
