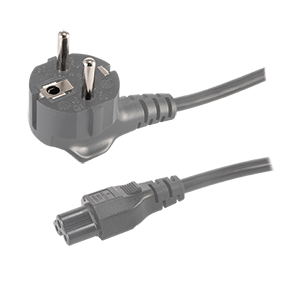

AC-R-C5-G EU
AC Power Cord Europe Right Angle, C5 for C6 inlet, 0.75 mm, 0.75 mm, 2 M, Dark Gray
Specifications
| Type | Description | |
|---|---|---|
| Connector 1 | CEE 7/7 Right Angle |
|
| Connector 2 | C5 |
|
| Cable Length (mm) | 2000 |
|
| Shielding | No |
|
| Cable Style | Round |
|
| Voltage Rating (Vac) | 250 |
|
| Current Rating (A) | 2.5 |
|
| Wire Gauge (AWG) | 18 |
|
| Wire Gauge (mm) | 0.75 |
|
| Jacket Material | PVC |
|
| Color | Dark Gray |
|
| IP Rating | No IP Rating |
|
| Series | AC-R-C5 EU |
|
