AC-C7-FR-S NA

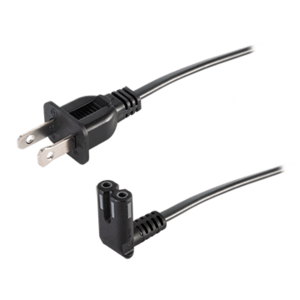

AC Power Cord North America, Flat Right Angle C7 for C8 inlet, 0.75 mm, 3', Black
Specifications
| Type | Description | |
|---|---|---|
| Connector 1 | NEMA 1-15P |
|
| Connector 2 | C7 Flat Right Angle |
|
| Cable Length (mm) | 1830 |
|
| Shielding | No |
|
| Cable Style | Flat |
|
| Voltage Rating (Vac) | 125 |
|
| Current Rating (A) | 7 |
|
| Wire Gauge (AWG) | 18 |
|
| Wire Gauge (mm) | 0.75 |
|
| Jacket Material | PVC |
|
| Color | Black |
|
| IP Rating | No IP Rating |
|
| Series | AC-C7-FR NA |
|
