AC-C13-R-L-B NA

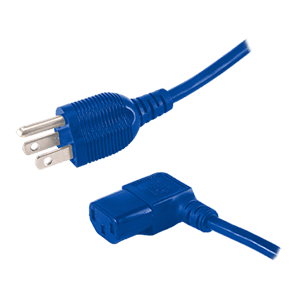

AC Power Cord North America, Right Angle C13 for C14 inlet, 0.75 mm, 9', Blue
Specifications
| Type | Description | |
|---|---|---|
| Connector 1 | NEMA 5-15P |
|
| Connector 2 | C13 Right Angle |
|
| Cable Length (mm) | 2740 |
|
| Shielding | No |
|
| Cable Style | Round |
|
| Voltage Rating (Vac) | 125 |
|
| Current Rating (A) | 7 |
|
| Wire Gauge (AWG) | 18 |
|
| Wire Gauge (mm) | 0.75 |
|
| Jacket Material | PVC |
|
| Color | Blue |
|
| IP Rating | No IP Rating |
|
| Series | AC-C13-R NA |
|
