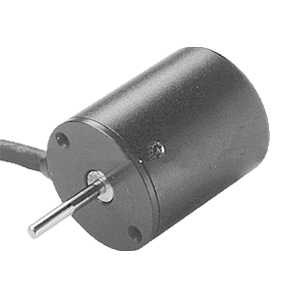

MES12 Series

MES12 Series

This product has been discontinued. If you have any questions or concerns, please review the EOL notice.

20 mm, 100 ~ 2048 PPR, Square Wave, Incremental, Optical Shaft Encoder

Specifications

Type Description
Select
Series MES12
Input Voltage (Vdc) 4.5 ~ 5.5
Shaft Length (mm) 10
Shaft (Bore) Ø (mm) 2
Operating Temp. (°C) 0 ~ 60
Speed, Max. (RPM) 6000
