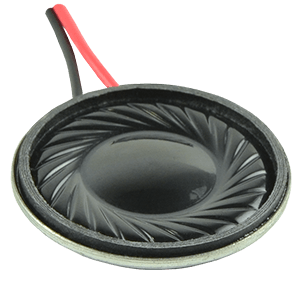

CMS-28588N-L152B
28 mm, Round frame, 2 W, 8 Ohm, Neodymium Magnet, PEI Cone, Wire Leads with Connector, Speaker
Amplify Your Innovation!
Need a team of sound specialists to optimize your design's audio system? From speaker enclosures to custom audio solutions and more, Same Sky's industry-leading audio design services are here to help.
Learn MoreSpecifications
| Type | Description | |
|---|---|---|
| S.P. Level (dB) | 99 (1 W / 0.1 m) |
|
| Nominal Input (W) | 2 |
|
| Max Input (W) | 2.5 |
|
| Enclosure | Recommended |
|
| Impedance (Ohms) | 8 |
|
| Resonance Freq. (Hz) | 550 |
|
| Mounting Style | Wire Leads with Connector |
|
| Cone Type | PEI |
|
| Magnet Type | Nd-Fe-B |
|
| Frame Shape | Round |
|
| Dimensions LxWxH (in) | 1.1 x 1.1 x 0.22 |
|
| IP Rating | No IP Rating |
|
| Dimensions LxWxH (mm) | 28 x 28 x 5.5 |
|
| Series | CMS-23558N-L152 |
|
