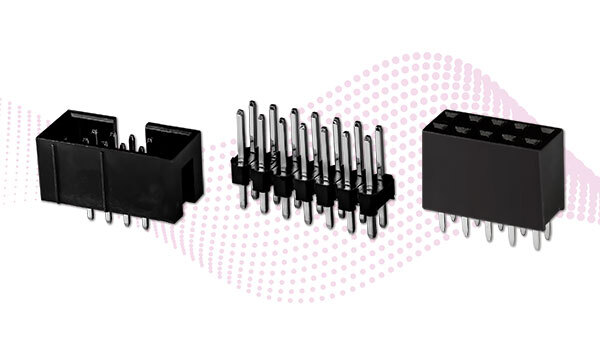

Same Sky^® and its Interconnect Group today announced the addition of rectangular connectors to its connectors product portfolio. The SSK family includes a range of male pin headers, female pin headers, and box headers. Available in one or two row configurations, these rectangular connectors offer pin counts from 1 to 40 pins, pitches of 2.54 mm, and gold flash contact finishes.

All models feature straight pins, through hole mounting styles, and push-pull fastening types. Additional mechanical and electrical specifications include:

• Voltage rating: 250 Vdc
• Current rating: 3 A
• Contact length – mating: 6 mm
• Contact length – post: 3 mm
• Operating temperature range: -40 to 105°C

The SSK models are available immediately with prices starting at $0.17 per unit at 100 pieces through distribution. Please contact Same Sky for OEM pricing.

For helpful resources and tools on connectors, check out Same Sky’s Resource Library that houses a range of blog posts, videos, and more.
