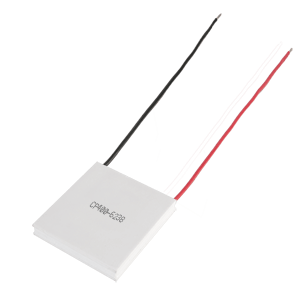

CP400-6238
CP400-6238
CP400-6238 Alternate View

CP400-6238

62 x 62 x 3.8 mm, 40 A Input with Leads, Peltier (TEC) Module

Datasheet

Specifications

Type Description
Select
Imax (A) 40
Vmax (V) 26.6
Qmax (Th=27°C) (W) 627.9
Qmax (Th=50°C) (W) 680.4
ΔTmax (Th=27°C) 70
ΔTmax (Th=50°C) 79
Resistance (Th=27°C) (Ohms ± 10%) 0.49
Resistance (Th=50°C) (Ohms ± 10%) 0.53
Dimensions LxWxH (mm) 62 x 62 x 3.8

Technical Docs

Datasheet
